Product Detail

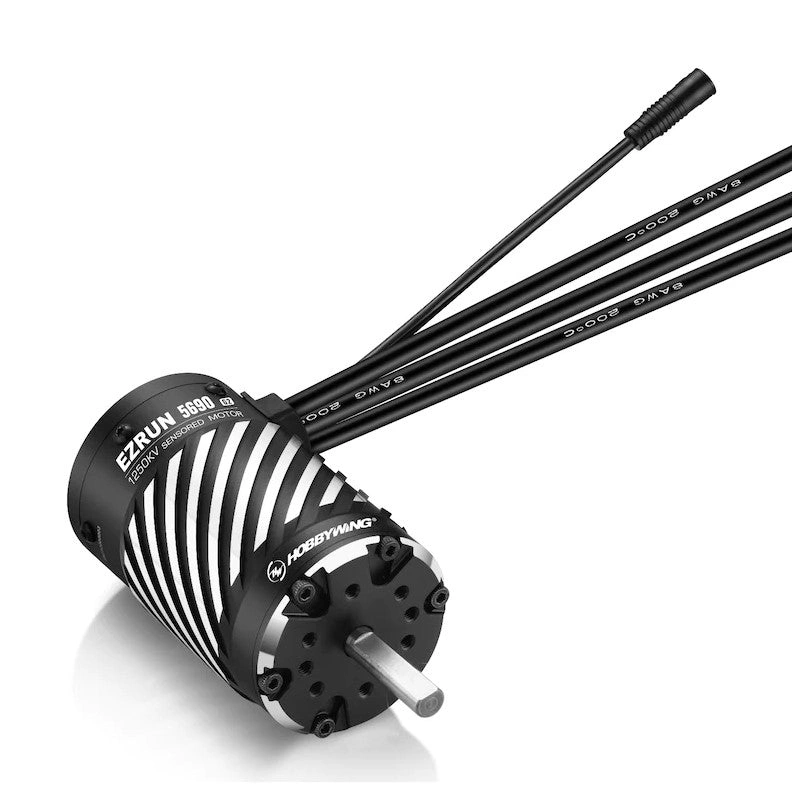

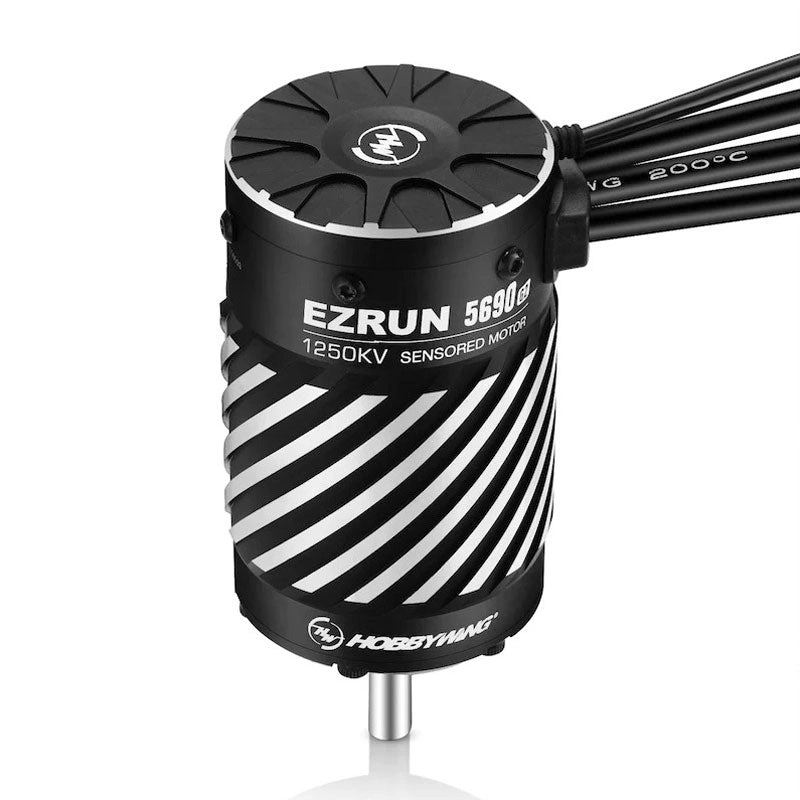

EzRun 5690 SD 1250 KV Black G2 Motor

Waterproof Sensored Brushles Motor Technology

Compared with the previous generation, it has added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.

It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.

The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.

CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.
Max Power for Uber-sized vehicle (1/6, 1/5)

• 1250KV
• 3-8S Lipos
• No load Current: 6.6A
• Diameter/Length: 56mm (2.2') L=90.2mm (3.55')
• Shaft Diameter/Length: 9mm (.31') L=30mm (1.18')
• Bearing Size (mm): Front=D22xD8xT7 Rear=D19xD8xT6
• Four Poles
• Weight: 867g
