Product Detail

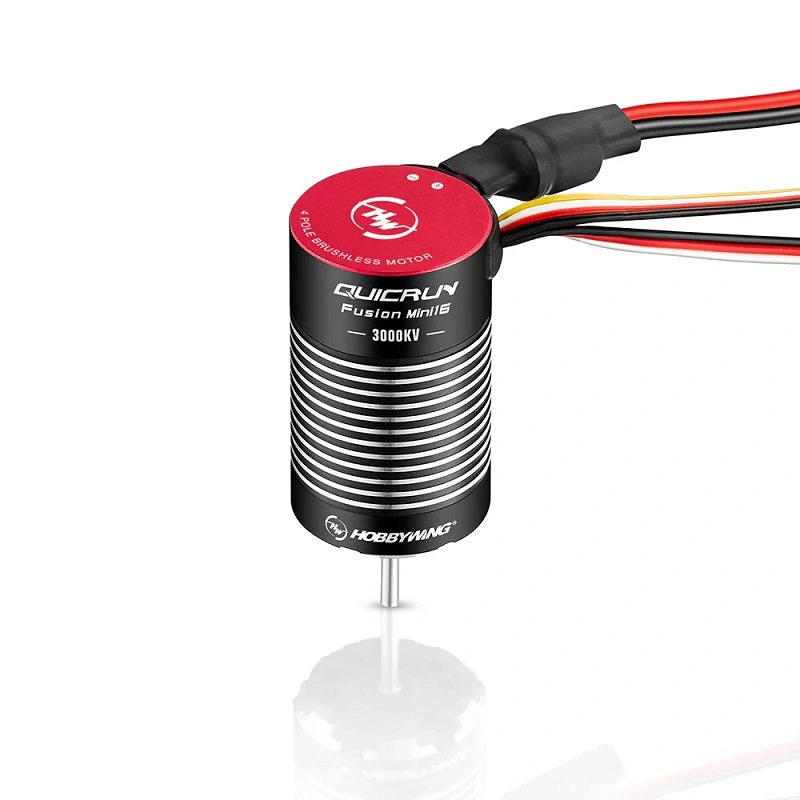

This is the Quicrun Mini16 Fusion 370 2-in-1 Brushless ESC and Motor System from Hobbywing. Featuring an integrated design that combines the ESC and motor, this system simplifies the layout and wiring of your RC car for the ultimate in convenience. Using FOC (Field Oriented Control) technology, it provides superior low-speed torque, making it an excellent choice for rock crawlers that need smooth control and strong power. Its high efficiency and quieter operation allow for longer run times, while its IP65 protection ensures reliable performance in any condition.

Features:

• Integrated ESC and motor design for easier installation
• FOC driving mode for smooth low-speed control
• IP65 waterproof and dustproof for all-weather performance
• Built-in switch mode BEC with 6V/7.4V adjustment
• Active drag brake force adjustment for better incline control

Specifications:

Suggested Application: 1/16 & 1/18 Crawler
Motor Type: Brushless
Input Voltage: 2-3S LiPo
Continuous Current: 30A
Peak Current: 80A
Dimensions (LxWxH): in (24x42mm)
Weight: oz (72g)
Motor Limits:
BEC Voltage: 6/7.4V adjustable
BEC Current: 4A
Motor Connector: -
Battery Connector: EC2
Throttle Wire: Servo Wire
Programming: Button / Remote Program Box

Includes:

• (1) Quicrun Mini16 Fusion 370 2-in-1 Brushless ESC & Motor
• (1) Mounting Plate
