Hobbywing XERUN SCT 3652SD 4300kV Brushless Motor

Hobbywing Xerun SCT 4300kV Sensored Brushless Motor – Unleash Your Speed!

Unleash your inner radiance with this exquisite piece – a captivating blend of timeless design and modern allure. Crafted for the soul who embraces the extraordinary, it’s more than just an object; it’s a whispered promise of adventure and effortless style. Prepare to turn heads and ignite conversations.

$40.00 $79.99

num:

description

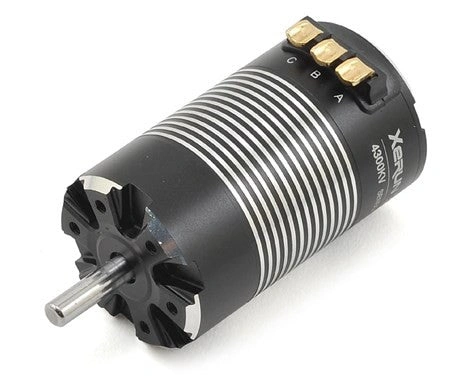

This is the Hobbywing XERUN SCT 3652SD G2 Sensored Brushless Motor. This 4-pole power house is great for light-duty short course, truck and monster truck sensored applications.

Note: Because this motor features a 5mm diameter motor shaft, it requires pinion gears with a 5mm bore.

Features:

Innovative 4-pole-8-magnet 'staggered pole' rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with a HW 1/8th sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with gr eat output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “sensor ed” mode.
With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power.
Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat.
Rebuild-able design (partially rebuild-able) and screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor effficiency.
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
Updated “U” solder tabs at the bottom of the motor for easy soldering and wiring.

Specifications:
kV (no load): 4300
LiPo: 2S
Resistance: 0.0052
No-load Current: 4.2A
Motor Diameter: 36mm (1.417in)
Motor Length: 52.5mm (2.067in)
Shaft Diameter: 5mm (0.197in)
Shaft Length: 15mm (0.591in)
Poles: 4
Weight: 187g (6.60oz)
Applications: 1/10 light duty SCT, truck, monster truck
