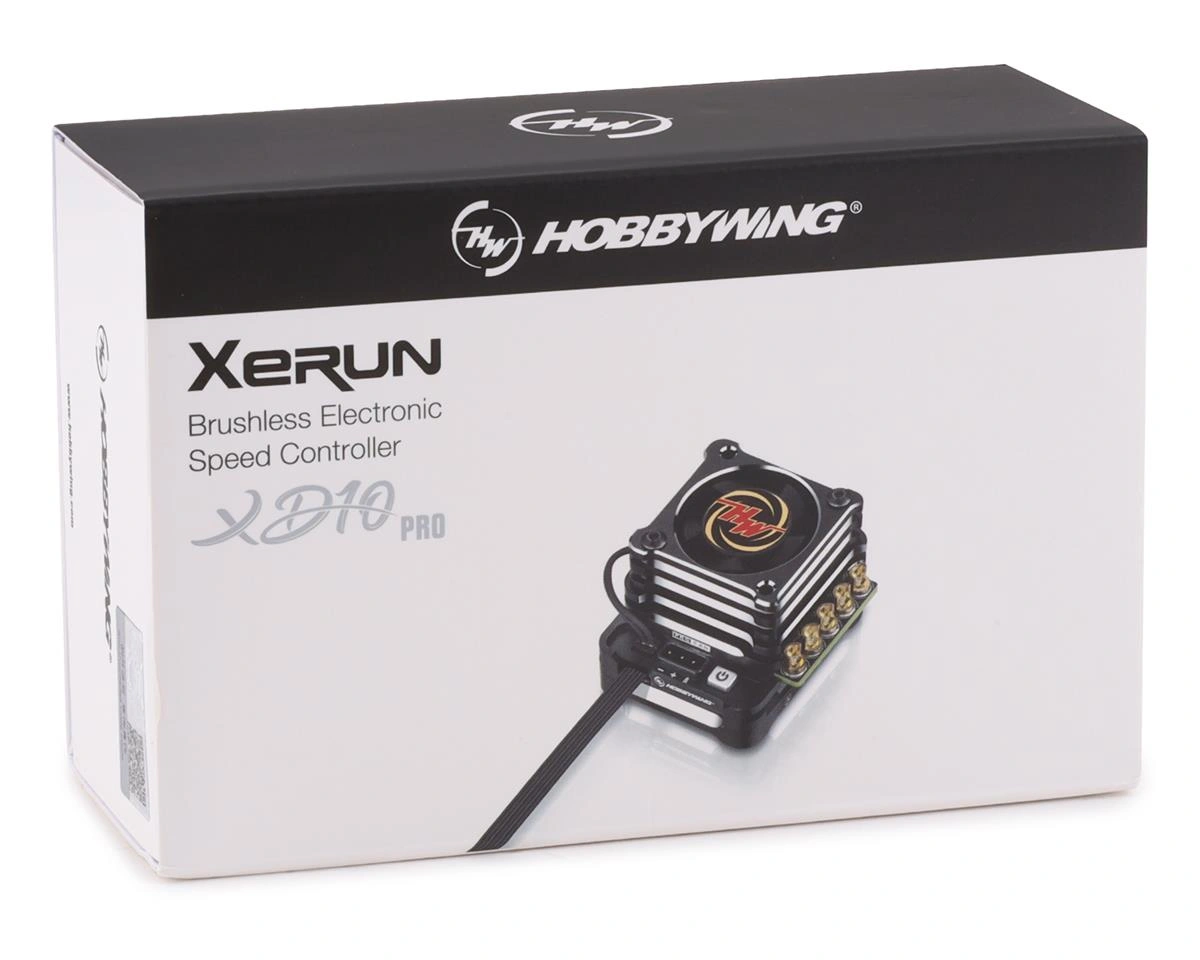

Xerun XD10 Pro: Unleash Purple Power! Drift Like a Pro, HobbyWing's Best ESC!

Get ready to unleash your inner rebel with this totally rad piece Forget boring it's all about breaking the mold This ain't your grandma's whatever It's got attitude a touch of mystery and enough cool to make heads spin Seriously you NEED this in your life Think freedom think expression think seriously awesome You'll be turning looks and starting conversations Guaranteed Plus it's so good you'll wanna wear it everywhere Do it You know you want to

$110.00 $219.99

num:

description

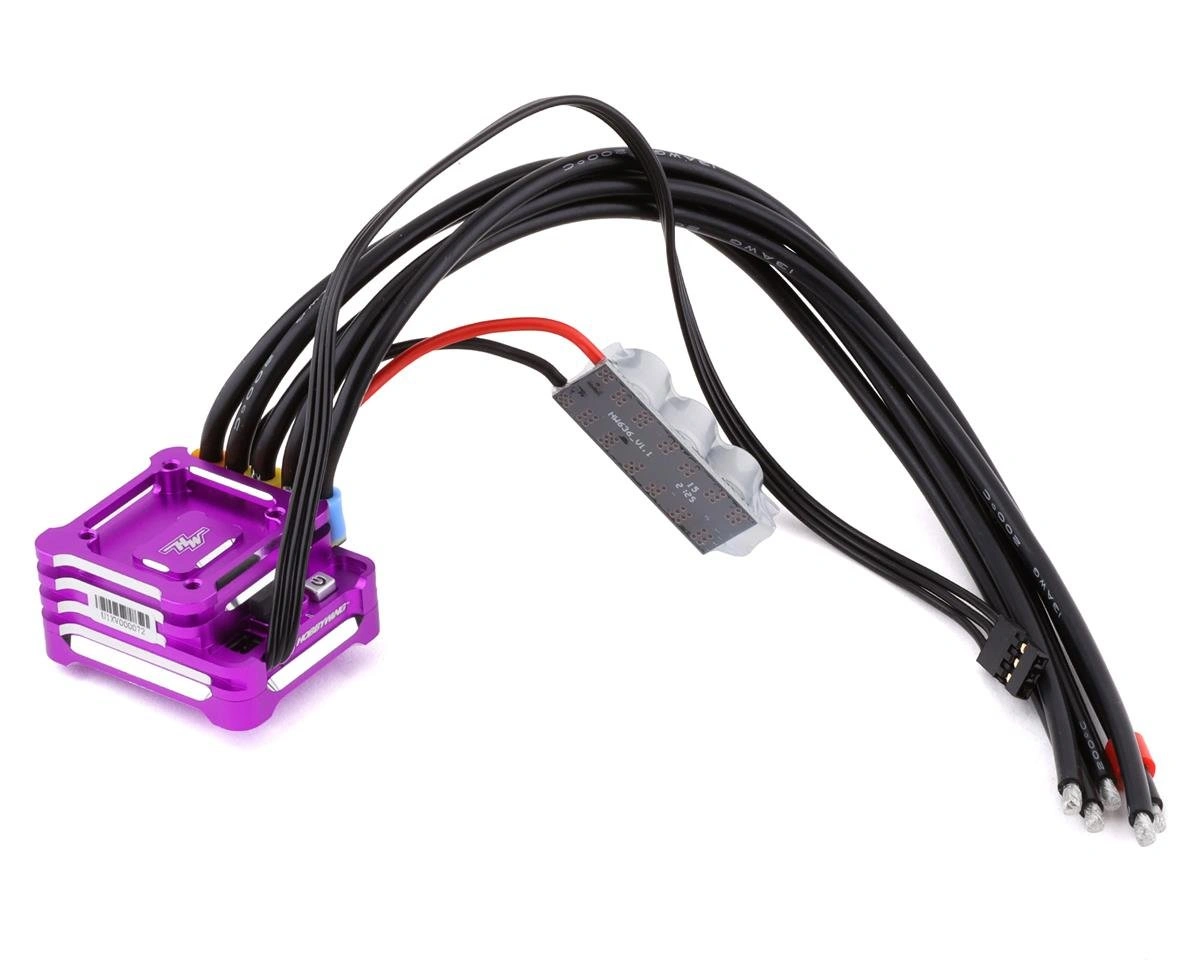

Enjoy reliable performance with the Hobbywing Xerun XD10 Pro ESC in purple. It's equipped with a built-in switch mode BEC with up to 10A max output and voltage adjustment from 5V to 7.4V. A separate PRG/FAN port helps maintain optimal cooling performance, and variable frequency regulations let you customize the driving and braking forces of the motors. It also comes with multiple protections, including low-voltage cutoff, ESC/motor thermal protection, and fail-safe/throttle signal loss protection. Plus, data logging records maximum data.

Features:

Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.

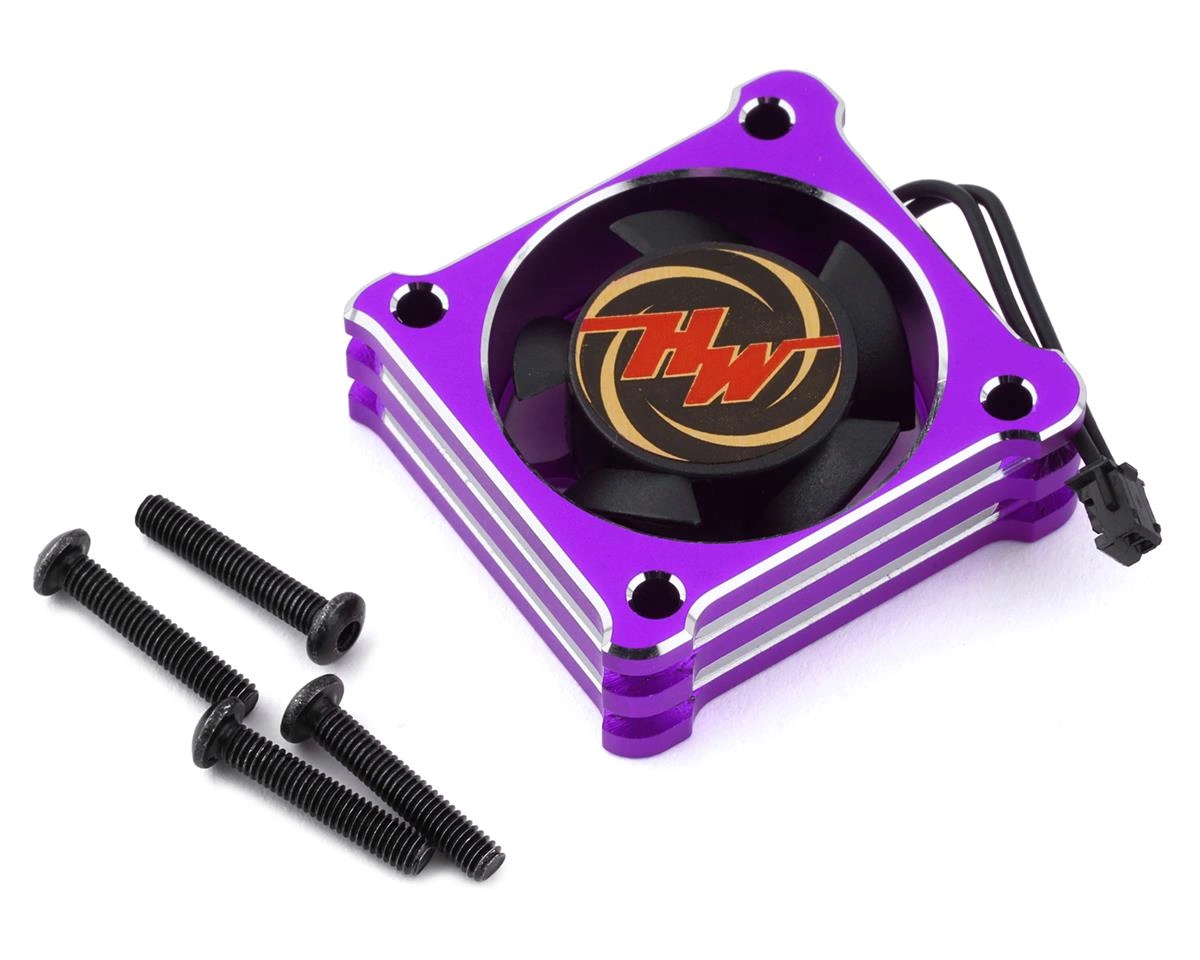

A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)

Specifications:

Application: 1/10th drift car

Cont./Peak Current: 100A/800A

Input Voltage: 2S LiPo/4-6S NiMH

BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)

Wires & Connectors: 13AWG 200mm

Programming device: LCD program box, OTA programmer (Available through Firmware update)

Firmware: LCD Program box via USB software (PC only), OTA (iOS / Android)

Size & Weight: 40.7x35.0x32.0mm (w/Fan)

Weight: 95g (w/ wires)

Motor Limit: 2S LiPo/6S NiMH ?8.5T

Includes:
